DIY Coanda Effect Micro Hydro Intake

If you’re still cleaning your hydro intake every time it rains, you’re doing it wrong. Standard mesh filters are a maintenance nightmare. Precision engineering doesn’t have to be high-tech—it just has to be smart. The Coanda effect screen uses physics to separate debris from water automatically. It’s the holy grail of off-grid energy: 24/7 power with zero weekend maintenance.

Generating your own power is an act of defiance and self-reliance. But that independence quickly turns into a chore when you’re hiking up a steep creek bank in a downpour just to scrub leaves off a clogged screen. Traditional intakes rely on simple mesh, which works until the first autumn leaf or heavy silt load hits the system.

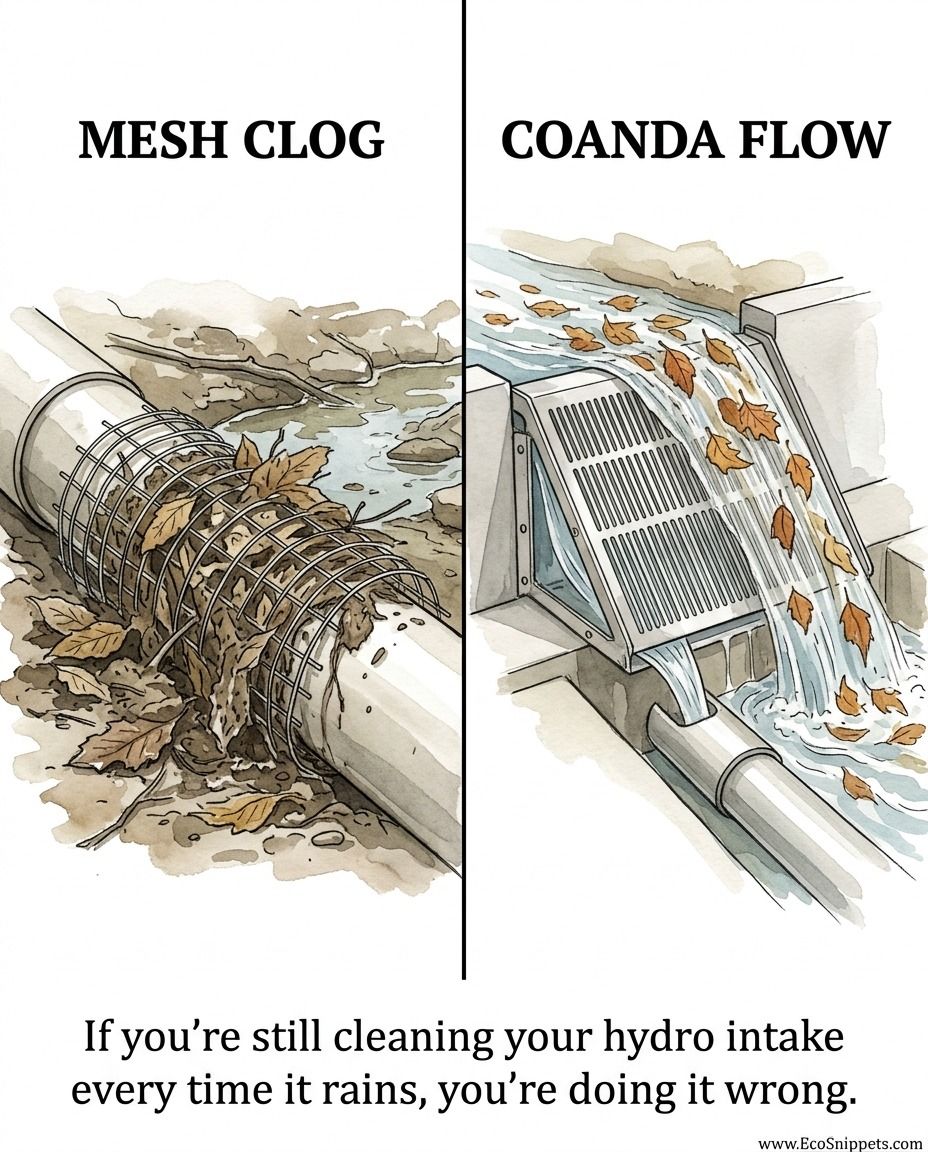

A smart homesteader looks to the laws of nature to solve mechanical problems. By harnessing fluid dynamics, specifically the Coanda effect, we can build a system that sorts the clean water from the mountain’s debris without a single moving part. This guide will show you how to move beyond the MESH CLOG vs COANDA FLOW struggle and build a truly resilient intake.

We aren’t just looking for “good enough” here. We are looking for an ancestral level of permanence—a system that works while you sleep, while you’re away, and while the river is at its worst. Let’s dive into the mechanics of building a self-cleaning micro hydro intake that stands the test of time.

Article Contents

DIY Coanda Effect Micro Hydro Intake

The Coanda effect is a phenomenon where a moving fluid—like the water in your creek—clings to a curved or tilted surface rather than falling straight off it. In the world of micro hydro, we use this principle to “shear” a thin layer of water away from the main flow. While the water is pulled through tiny horizontal slots, the heavier debris like sticks, leaves, and rocks carry enough momentum to skip right over the top.

Think of it like a high-speed sorting machine that never needs a battery. In a typical setup, the intake is mounted on a small weir or dam. As the stream flows over the crest, it hits an acceleration plate that smooths the flow into a fast, thin sheet. This sheet then passes over a screen made of tilted wedge wire. The water follows the curve of the wires and drops into your collection box, while the “trash” continues downstream.

This technology originated in large-scale industrial mining and irrigation but has become the gold standard for off-grid pioneers. It exists because nature is messy. Streams are filled with organic matter that wants to stop your turbine. The Coanda intake is the gatekeeper that ensures only the energy-rich fluid reaches your penstock, leaving the silt and leaves behind to nourish the valley below.

The Physics of the Shear: How It Works

To build a successful DIY intake, you must understand the difference between orifice flow and shear flow. A standard flat mesh screen uses orifice flow; the weight of the water pushes it through the holes. If a leaf covers a hole, that capacity is gone until you manually remove it. This is a losing battle in a forest environment.

The Coanda intake uses shear flow. The screen is made of stainless steel wires with a triangular profile, called wedge wire. These wires aren’t just flat; they are tilted at a slight angle, usually between 5 and 7 degrees. As the water rushes over these “teeth,” the leading edge of each wire slices off the bottom layer of the water column. This “slicing” action is incredibly efficient, allowing for high flow rates even through very narrow gaps.

The geometry is critical. If the water is too slow, it won’t have the momentum to clear debris. If the screen angle is too flat, it becomes a standard mesh filter and clogs. Most successful DIY builds aim for a screen slope of 25 to 35 degrees relative to the horizontal. This creates the perfect balance of “grab” for the water and “shed” for the debris.

Materials and Technical Specifications

When you are building for the long haul, material choice isn’t just a budget decision—it’s a legacy decision. You want 304 or 316-grade stainless steel for your screen. 316 is the “marine grade” option, offering superior resistance to corrosion if your water has high mineral content or if you’re near a coastal environment. 304 is usually sufficient for most freshwater mountain streams.

• Wedge Wire Spacing: For most micro hydro turbines (Pelton or Turgo), a slot gap of 0.5mm to 1.0mm is ideal. This excludes the fine grit that can erode your turbine nozzles over time.
• Wire Tilt: Look for “tilted” wedge wire panels. A 5-degree tilt is standard and provides the shearing action necessary for self-cleaning.
• Flow Capacity: A well-designed Coanda screen can typically handle about 100 to 140 liters per second per meter of width. For a small 500W to 1kW system, a screen 400mm wide is often more than enough.
• Support Structure: Use heavy-gauge stainless or high-density polyethylene (HDPE) for the collection box. Avoid wood unless it’s a temporary prototype, as the constant moisture and high-velocity water will rot it within a few seasons.

The most expensive part of this build is the stainless steel wedge wire panel. While you can find 3D-printable designs or attempt to weld your own, the precision required for a 0.5mm gap is hard to achieve in a home garage. Buying a pre-made screen “coupon” and building the housing around it is the smartest path for the serious DIYer.

Building the Acceleration Plate (The Ogee Slope)

The secret to a self-cleaning intake isn’t just the screen; it’s how the water arrives at the screen. You cannot simply dump a bucket of water onto the wedge wire and expect it to work. You need a smooth, laminar flow. This is achieved through an acceleration plate, often designed with an “ogee” or S-shaped curve.

The job of this plate is to take the turbulent water from the top of your weir and turn it into a high-velocity sheet. This sheet should be roughly 10mm to 20mm thick. As the water accelerates down the curve, the Coanda effect begins to take hold, “gluing” the water to the surface so it doesn’t splash or jump over the screen. Without this plate, the water will likely skip over the first few inches of your expensive screen, wasting potential energy.

For a DIY build, you can fabricate this plate from a sheet of 3mm stainless steel. Bend it to follow a smooth radius that leads directly into the top edge of your screen. Ensure there is no “lip” or “step” between the plate and the screen; even a 2mm bump can cause the water to detach from the surface and fly over the intake.
